I. 8-Step Precision Stamping and Automated Quality Rejection
The cornerstone of an electromagnetic brake lies in the structural rigidity of its brake backplate. RENHE’s brake backplate is forged through a continuous multi-station, 8-step precision stamping process. From the shearing, initial punching, and drawing of the raw sheet metal, to the mid-stage precision sizing and side punching, and finally the late-stage fine blanking and flattening, each process is not a simple physical deformation, but a precise control of stress release and metal lattice orientation.

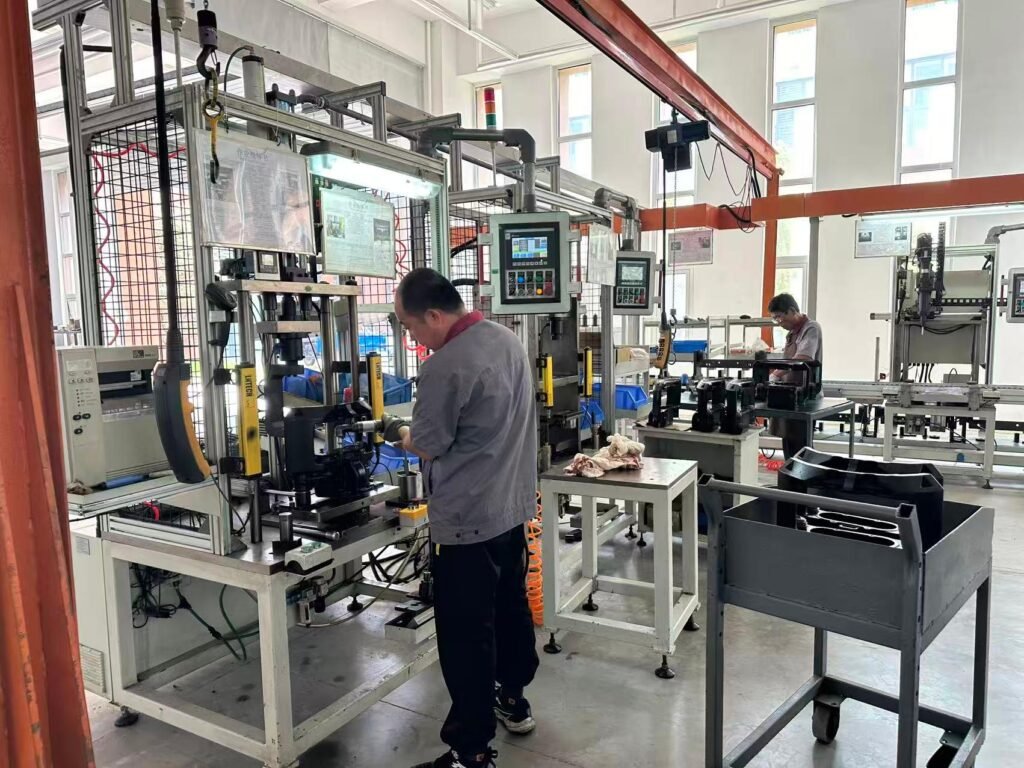

On this stamping production line, automated online inspection sensors are deeply integrated into every single process. Optical CCD imaging systems, micron-level laser rangefinders, and mechanical contact probes weave a network to perform real-time measurements of the backplate’s dimensions and thickness uniformity after each step. If any deformation exceeding the micron-level tolerance is detected, the intelligent assembly line immediately intercepts and rejects it, ensuring that only flawless semi-finished products flow into the next step.
II. Boss Parallelism of 0.05mm: The Mechanical Miracle of Even Magnetic Force
In an electromagnetic brake, the boss on the backplate is the core plane that carries the magnetic core and armature engagement. If the boss surface is not parallel, the magnetic field force generated after the electromagnetic coil is energized will deviate, causing tilted armature engagement, accelerated wear, and delayed braking response.
Through 8 steps of precision sizing and high-precision grinding, RENHE has successfully controlled the parallelism of the product’s boss to an astonishing 0.05mm. This almost demanding micron-level precision guarantees absolute uniformity of the electromagnetic engagement gap, enabling the armature to achieve an instant, smooth, and perfectly aligned engagement when the brake is energized, resulting in a more precise release of braking torque.
III. Precision Linkage Control of Brake Shoe Assembly: Stable Operation Within 0.1mm
Coordinating with the precision backplate, the critical geometric tolerances of the brake shoe assembly are executed with equally high-standard process constraints. During the final assembly and subsequent fine machining, both the perpendicularity and runout of the brake shoe are strictly guaranteed to be within 0.1mm.
- Perpendicularity ≤0.1mm ensures that the trajectory of the brake shoe does not deflect at the moment of releasing or engaging, maintaining a perfect normal fit with the friction pair.
- Runout ≤ 0.1mm significantly minimizes rotational inertia imbalances under high-frequency start-stop or high-speed operating conditions, effectively preventing high-frequency mechanical fatigue damage to the electromagnetic brake during long-term operation.
Conclusion
Excellence in engineering, craftsmanship in heart. RENHE’s unyielding dedication to every step of the manufacturing process for these three braking products, and our strict adherence to every 0.05mm and 0.1mm, together constitute our unshakable technological reputation in the field of commercial vehicle and industrial chassis braking. We always take precision manufacturing as our core, building a solid bridge to safety, stability, and efficiency for global customers.
