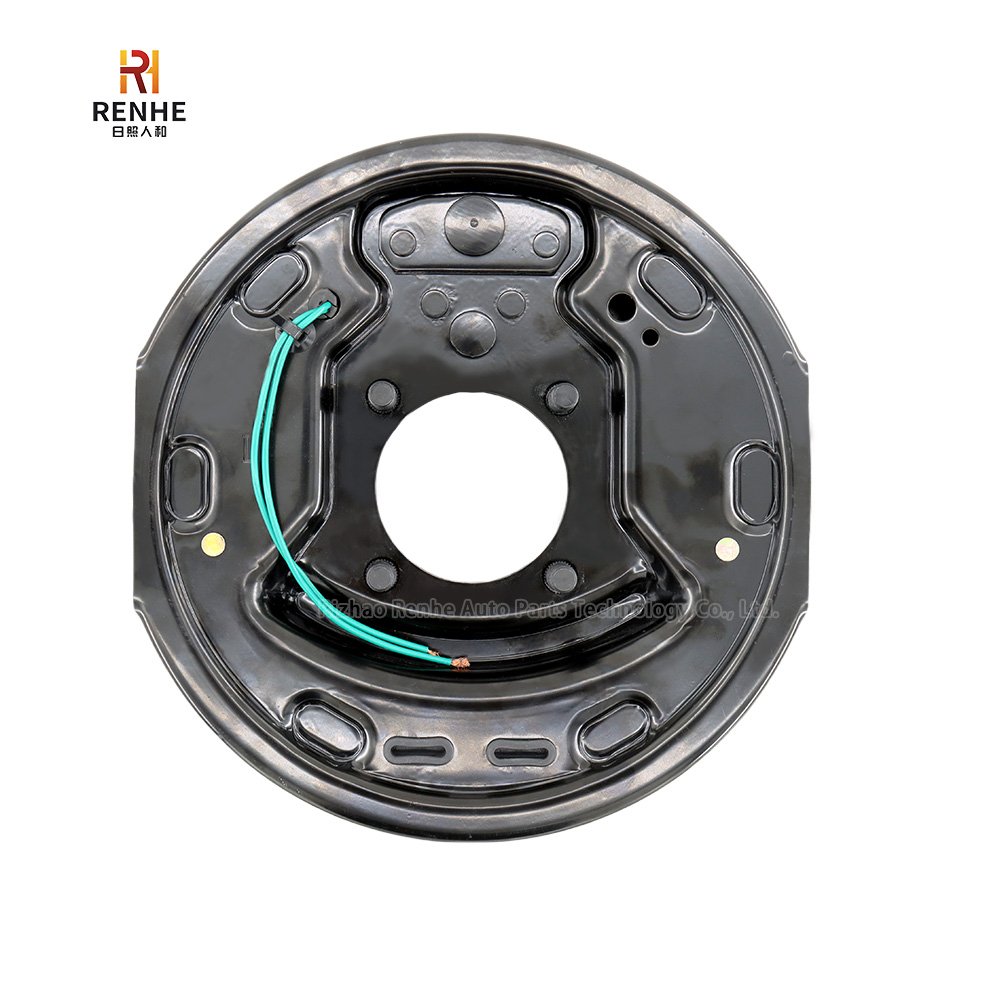

10" x 2-1/4" Forward Self-Adjusting

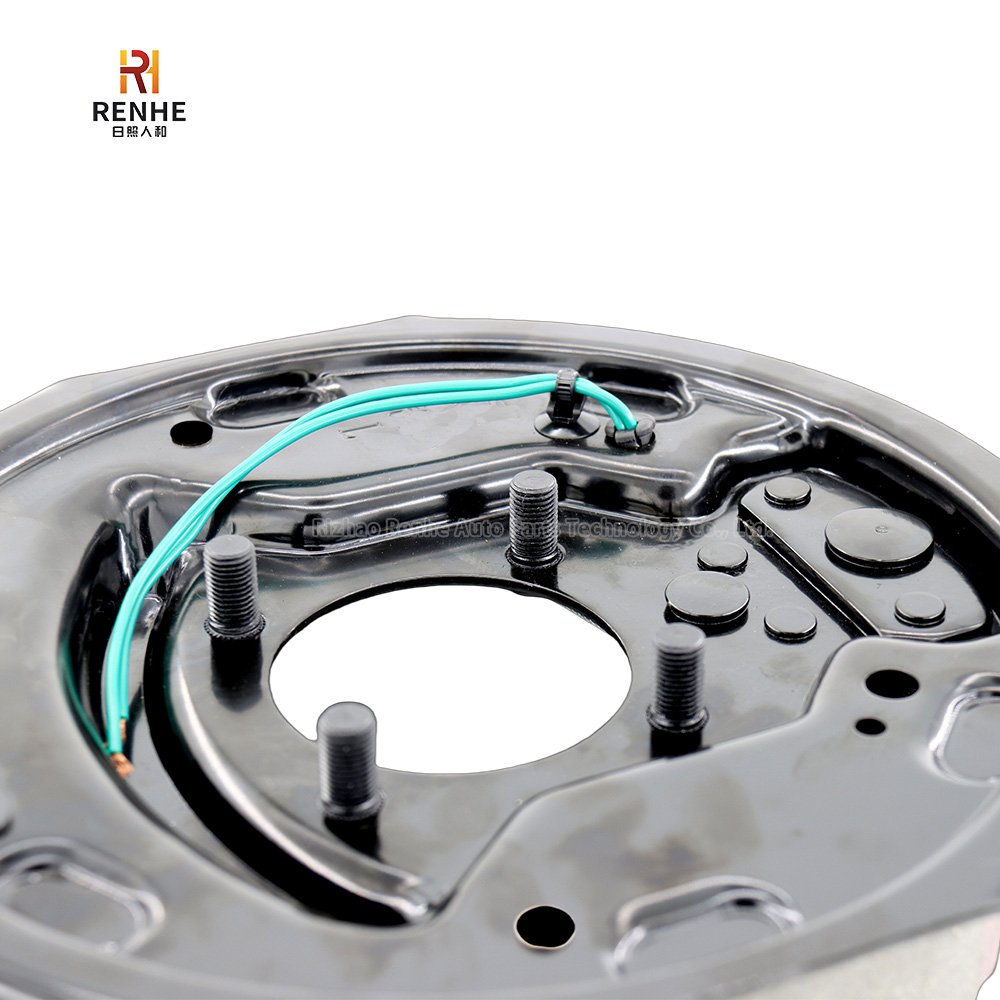

10" x 2-1/4" Forward Self-Adjusting - 图片 2

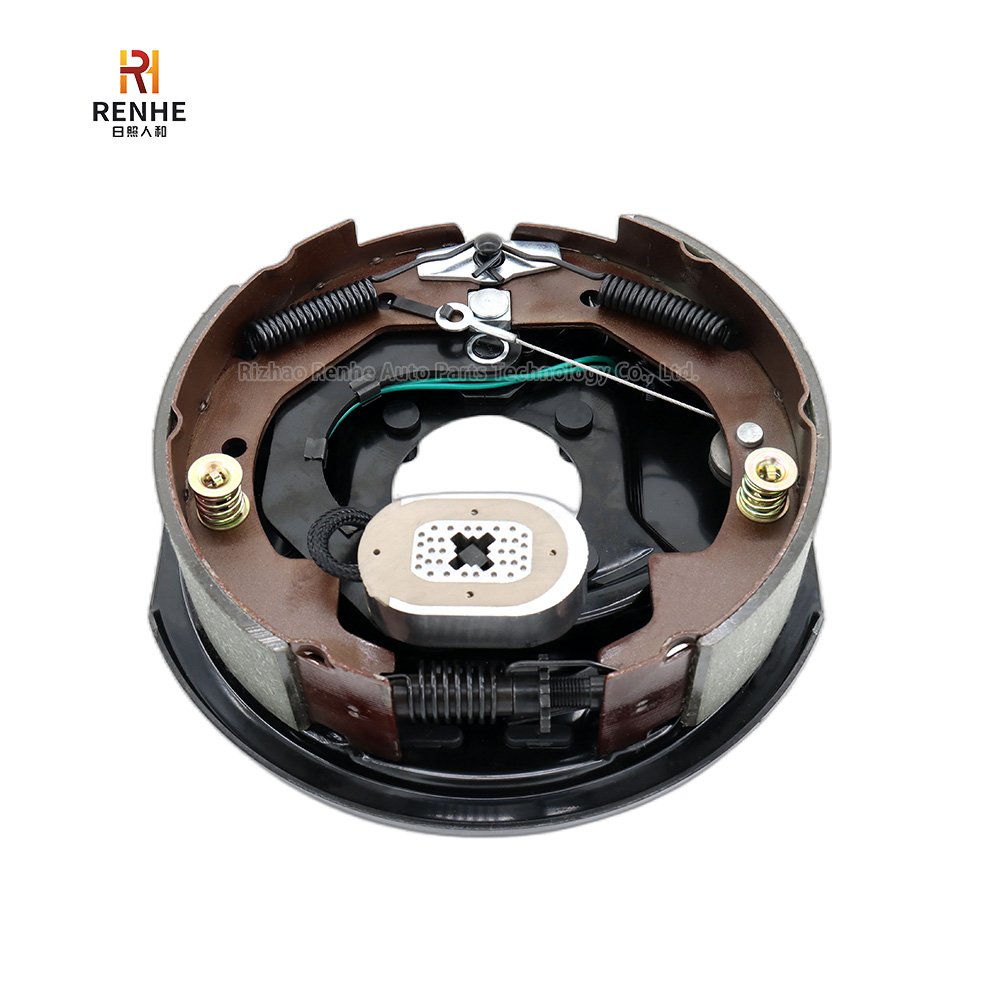

10" x 2-1/4" Forward Self-Adjusting - 图片 3

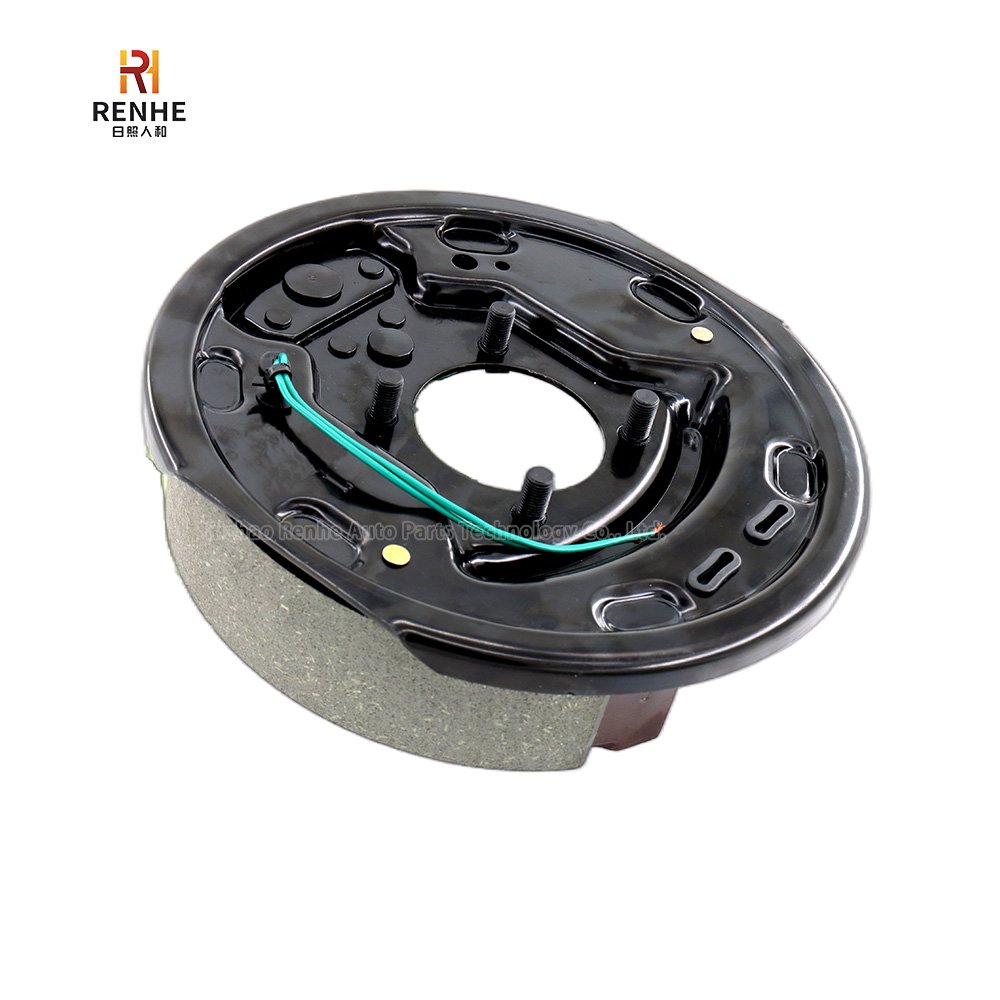

10" x 2-1/4" Forward Self-Adjusting - 图片 4

10″ x 2-1/4″ Forward Self-Adjusting

10″ x 2-1/4″ Forward Self-Adjusting Electric Brake Assemblies are engineered to directly replace parts from major brands like Dexter and Lippert. Featuring “Ready-to-Install” loaded backing plates complete with pre-assembled shoes, non-polarized magnets , and springs, our brakes reduce manual adjustment labor by 50%  while ensuring balanced braking. Treated with an anti-rust E-coat finish, RENHE brakes deliver superior durability and exceptional cost-effectiveness for wholesale

Send Inquiry
Facebook Youtube Whatsapp

Specifications Table

Specification  Left Hand / Driver Side  Right Hand / Passenger Side
Brake Size 10″ x 2-1/4″ (254mm x 57mm) 10″ x 2-1/4″ (254mm x 57mm)
Axle Capacity  3,500 lbs 3,500 lbs
Bolt Pattern  4-Bolt 4-Bolt
Bolt Circle  2.875″ 2.875″
Adjustment  Forward Self-Adjusting Forward Self-Adjusting
Wheel Size Fitment  13″, 14″, 15″ 13″, 14″, 15″
Electrical  12V DC, Non-polarized magnet 12V DC, Non-polarized magnet
Finish E-coat (Anti-rust) E-coat (Anti-rust)

Cross Reference

Side / Position  Lippert (LCI) OEM No. Dexter OEM No. (Nev-R-Adjust) Kit Number
Left Hand / Driver Side  296649 (or 1222583) 023-468-00 K23-468-00
Right Hand / Passenger Side  296650 (or 1224503) 023-469-00 K23-469-00

Applications

Compatible Axle Brands :

  • Fully compatible with Dexter, Lippert (LCI), AL-KO, Rockwell, Hayes, and Quality Axles.

Common Applications :

  • RV / Travel Trailers:Mid-size travel trailers like Jayco Flight series.
  • Utility Trailers:Landscape and ATV transport trailers.
  • Cargo Trailers :Enclosed logistics trailers.

Horse Trailers: Trailers with a 7,000 lbs GVWR tandem axle setup
